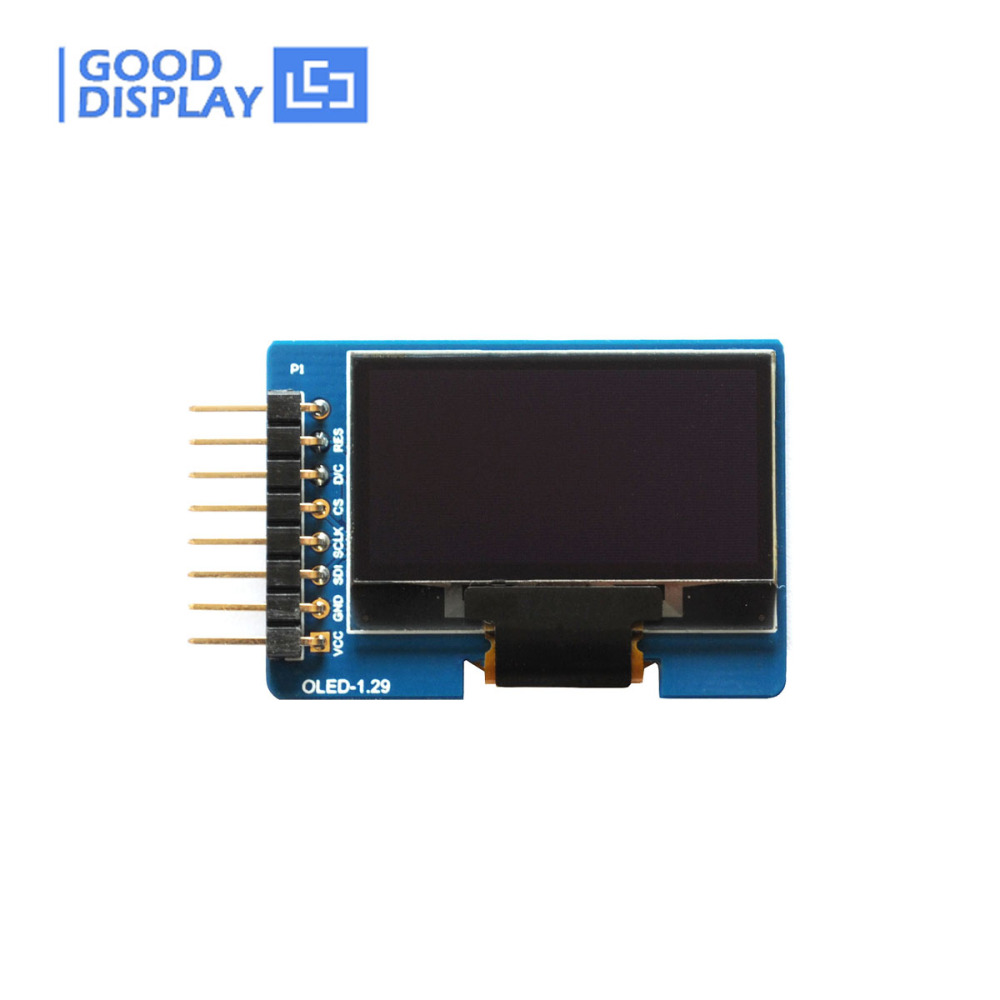

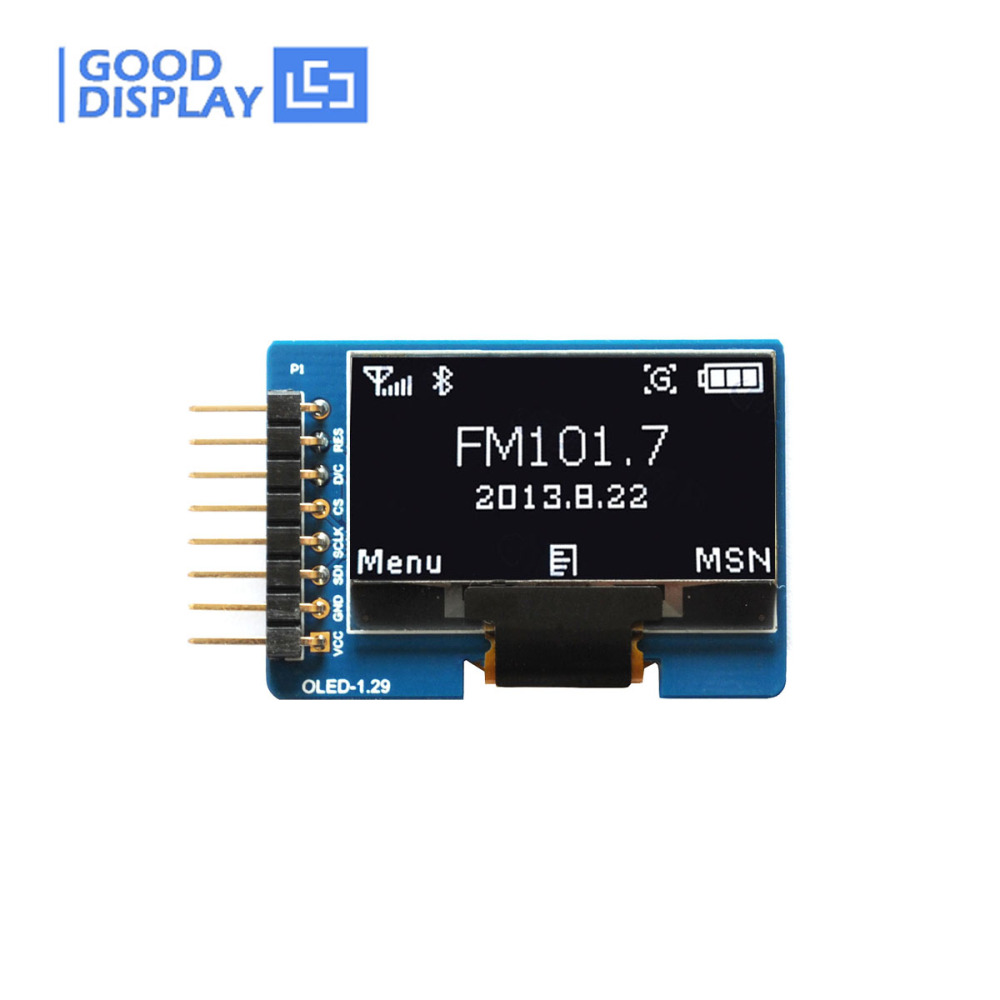

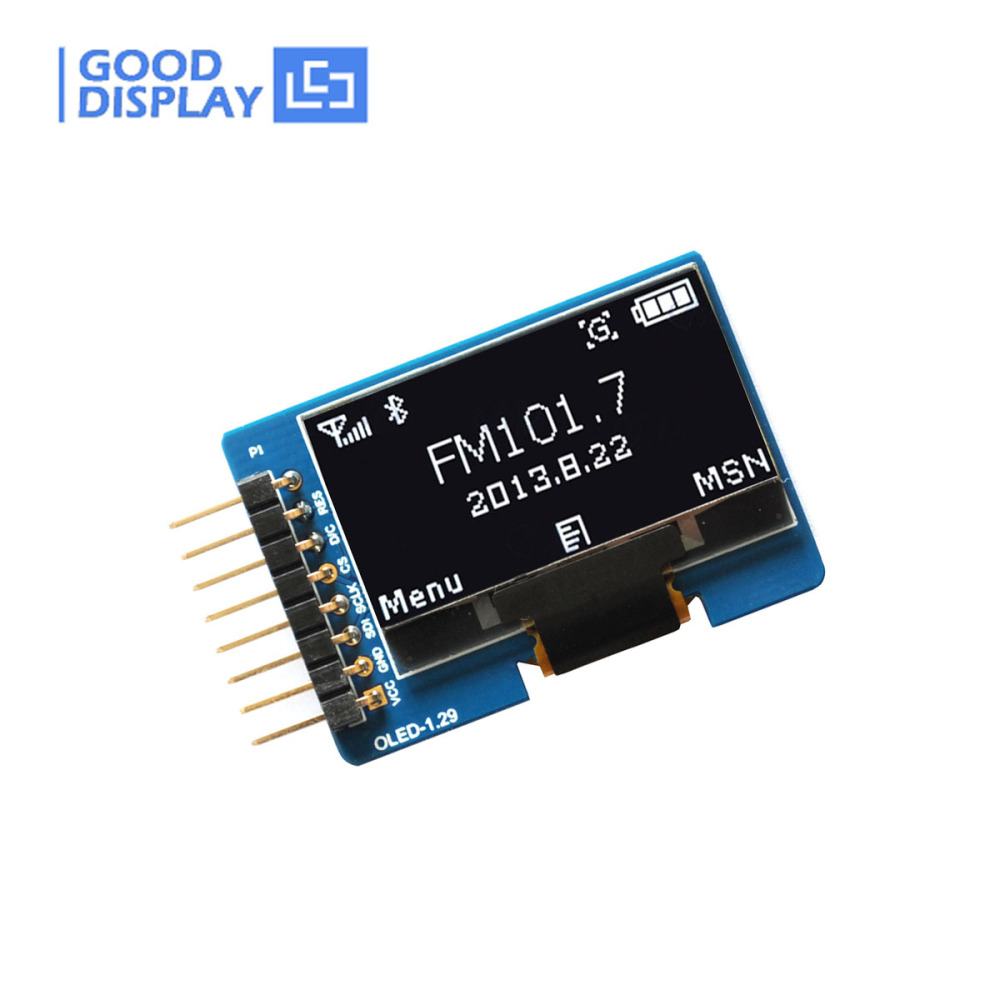

1.29 inch OLED display module with adapter board, wide temperature, GDMN0129WP30

GDMN0129WP30
Consists of a 1.29 inch OLED display and its adapter board. It suits for STM32 Platform, Arduino Platform and Raspberry Pi Platform. The display can make its own light, no backlight is required, wide operating temperature -40℃.
Price:
USD
$12.02
Quantity:
-
+
(9 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(1)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION

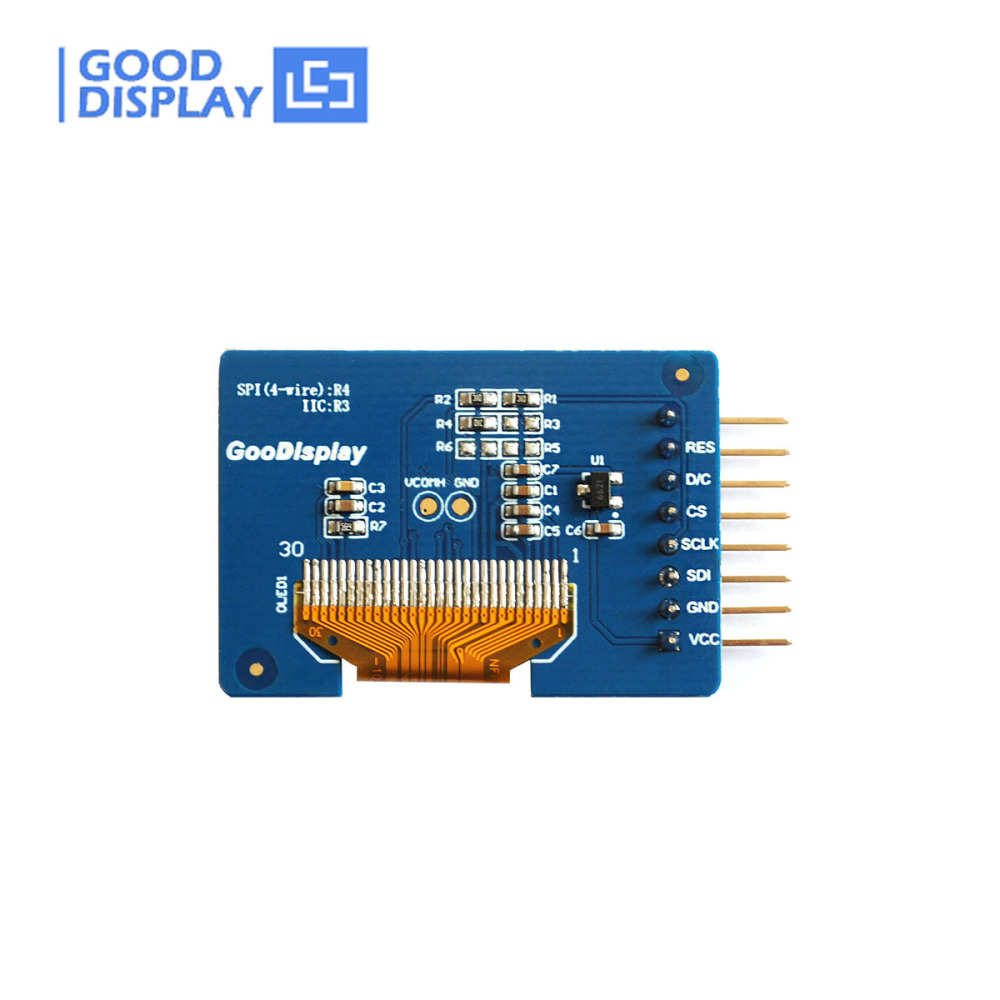

GDMN0129PGWP30 consists of a 1.29 inch OLED display and its adapter board. It suits for STM32 Platform, Arduino Platform and Raspberry Pi Platform. The adapter board's main function is to provide a communication interface and power supply for this 1.29 inch OLED display. At the same time, it is convenient for users to quickly master the use of the OLED display.

Self-luminous, no backlight required. This reduces the power required to run the OLED and it is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature. It can be used in any embedded systems,industrial device,security,medical and hand-held device.



Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




● Self-luminous, no backlight is required.
● High contrast,extremely wide viewing angle
● It suits for STM32 Platform, Arduino Platform and Raspberry Pi Platform.
● Wide operating temperature: -40℃~85℃








 THE ABOVE PRICE INCLUDE



1) 1.29 inch OLED display module with adapter board, wide temperature * 1pc




 MAIN PARAMETERS




PART NUMBER GDMN0129PGWP30
DIAGONAL SIZE 1.29"
DISPLAY MODE Passive Matrix
DISPLAY COLOR White

DRIVE Duty

1/64 Duty

INTERFACE 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Driver IC SSD1315

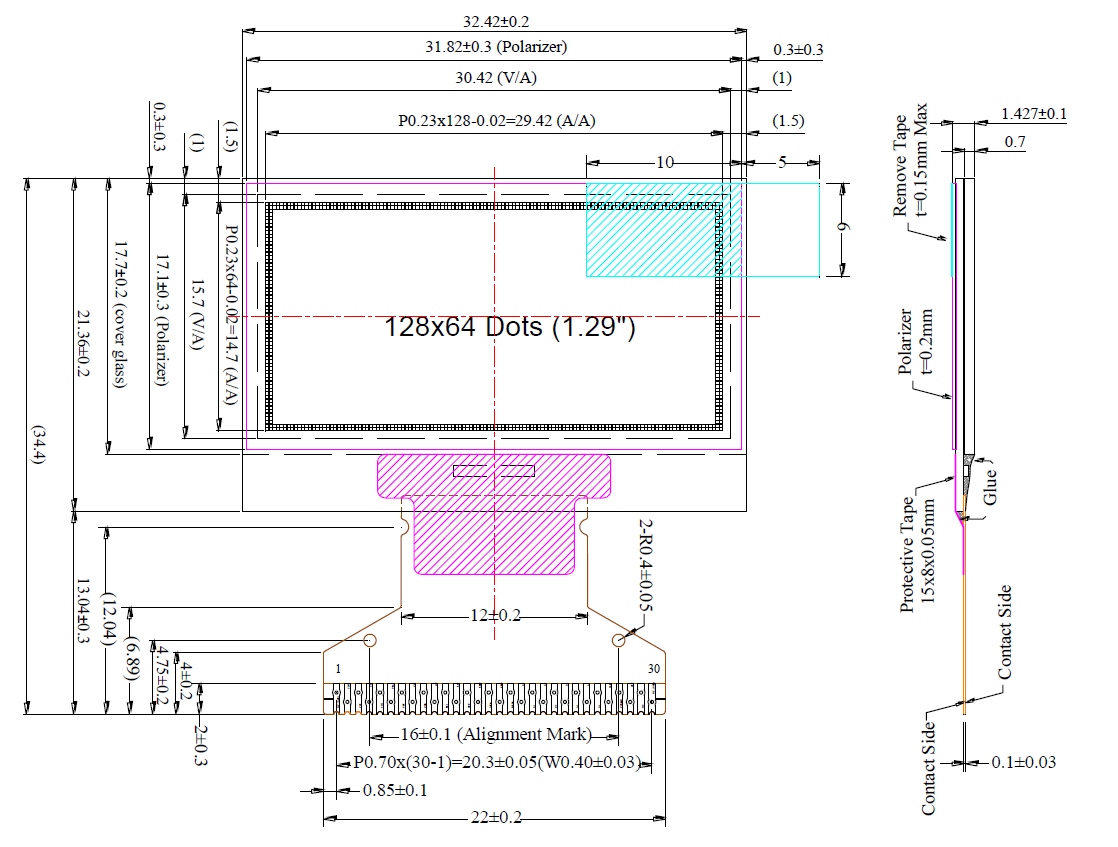

OUTLINE DIMENSION(mm)

Display: 32.42x21.36x4

Connector board: 39.8x27.8

ACTIVE AREA(mm) 29.42x14.7

PIXEL PITCH(mm)

0.23x0.23

PIXEL SIZE(mm)

0.21x0.21

BRIGHTNESS(Typ) 110 cd/m2
VIEW ANGLE Free
OPERATING TEMP. -40℃~85℃
POWER SUPPLY 3.3V

MAIN FUNCTION

1. Provide communication interface and  power supply for OLED

2. It is convenient for users to quickly master the use of OLED display.

ACCESSIBILITY

1. OLED display power consumption measurement     2. OLED display working state detection
