New 1.54 inch e-paper display frontlight three colors red E-ink GDEW0154Z04-FL

GDEW0154Z04-FL
1.54 inch color e-paper display with frontlight, 200x200 resolution,  24 pins FPC connection, SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black, white and red.
Price:
USD
$11.52
    Please select the information you wantX
Quantity:
-
+
(20 available)
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com



General Description

This is a 1.54 inch color e-paper display with frontlight, 200x200 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black, white and red.



In view of so many advantages: ultra low power consumption, near 180 degree view angle, GDW0154Z04-FL is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products, and it can be used in dark surrounding.
The above price inclundes
1)1.5''color e ink with frontlight GDEW0154Z04-FL *1pc
2)FPC Connector *1pc
After order our sales will contact you soon and send the documentation & source code.
Feature
With frontlight

SPI interface

Three colors, black, white and red
Development platform available
 STM32 / Arduino Raspberry Pi

Main Parameters

Part Number

GDEW0154Z04-FL

Type

Dot Matrix

Resolution

200x200

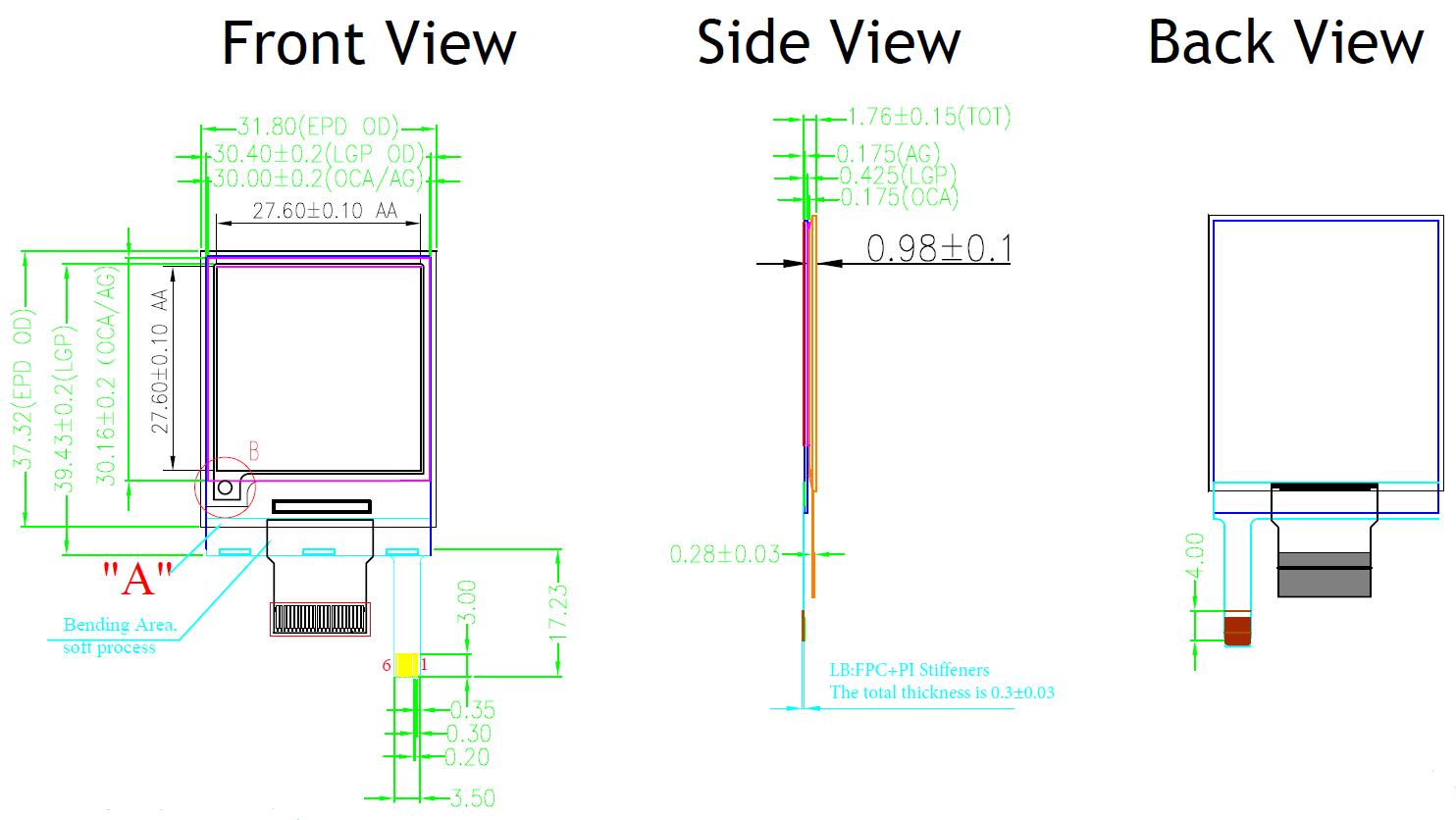

Outline Size(mm)

31.8x37.3x1.8

Actve Size(mm)

27.6x27.6

Operating Temp.

0℃~40℃

Storage Temp.

-25℃~60℃

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

2

Color

Black,White,Red

Time of refresh(s) 8
Current of the refresh(mA) 8
Interface  SPI
Driving voltage 2.8V-3V
Supply voltage of LED frontlight(TYP.) 3V

Related Products

Size

Part Number

Color

Resolution

Outline Size(mm)

Support for partial refresh

Optional front light

Features

Refresh Time

(Measured Value )

1.54inch

GDEP015OC1

B/W

200*200

31.8*37.32*1.05

UV

1.81S

GDEH0154D67

B/W

200*200

31.8*37.32*1.05

--

6.29S

GDEW0154C39

B/W/Y

152*152

31.8*37.3*0.98

×

--

--

GDEW0154Z17

B/W/R

152*152

31.8*.36.32*1.05

×

--

3.49S

GDEM0154E97LT

B/W

152*152

31.8*.36.32*1.05

×

Ultra-low temperature

2.15S

GDEW0154Z04

B/W/R

200*200

31.8*37.3*1.05

×

--

6.99S

GDEW0154T8FL

B/W

152*152

31.80*37.32*0.98

with front light

6.67S

GDEW0154T8

B/W

152*152

31.80*37.32*0.98

--

6.67S

GDEW0154Z04FL

B/W/R

200*200

31.8*37.3*1.05

×

with front light

6.99S

GDEH0154D27FL

B/W

200*200

31.8*.36.32*1.05

--

6.29S

GDEW0154C39FL

B/W/Y

152*152

31.8*37.3*0.98

×

--

--
