New 1.54 inch e-paper display frontlight 4 Grayscale partial refresh E-ink GDEW0154T8-FL

GDEW0154T8-FL
1.54 inch 4 grayscale e-paper display with frontlight, 152x152 resolution,  24 pins FPC, SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white.
Sold:2
Price:
USD
$10.29
    Please select the information you wantX
Quantity:
-
+
(34 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com



General Description

This is a 1.54 inch 4 grayscale e-paper display with frontlight, 152x152 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black and white.



In view of so many advantages: ultra low power consumption, near 180 degree view angle, 4 Grayscale, support partial refresh, GDW0154T8-FL is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products, and it can be used in dark surrounding.
The above price inclundes
1)1.5''e ink with frontlight GDEW0154T8-FL *1pc
2)FPC Connector *1pc
After order our sales will contact you soon and send the documentation & source code.

If you want to buy this display with demo kit together, click here:
http://upaj177.myueeshop.com/154-inch-152x152-4-grayscale-partial-refresh-e-paper-display-with-frontlight-with-demo-kit-gdew0154t8-fldespi-v30-p0306.html

If you want to buy this display with connect board, click here:
http://upaj177.myueeshop.com/154-inch-152x152-4-grayscale-partial-refresh-e-paper-display-with-frontlight-with-multifunction-connection-adapter-board-gdew0154t8-fldespi-c03-p0310.html
Feature· 152×152 resolution
· 4 Grayscale
· With frontlight can be used in dark surrounding.
· Partial refresh
· Support fast refresh, 0.82s

· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development demo kit with resources and manual (STM32 platform )
· Development platform available
 STM32 / Arduino Raspberry Pi / ESP8266

Main Parameters

Part Number

GDEW0154T8-FL

Type

Dot Matrix

Resolution

152x152

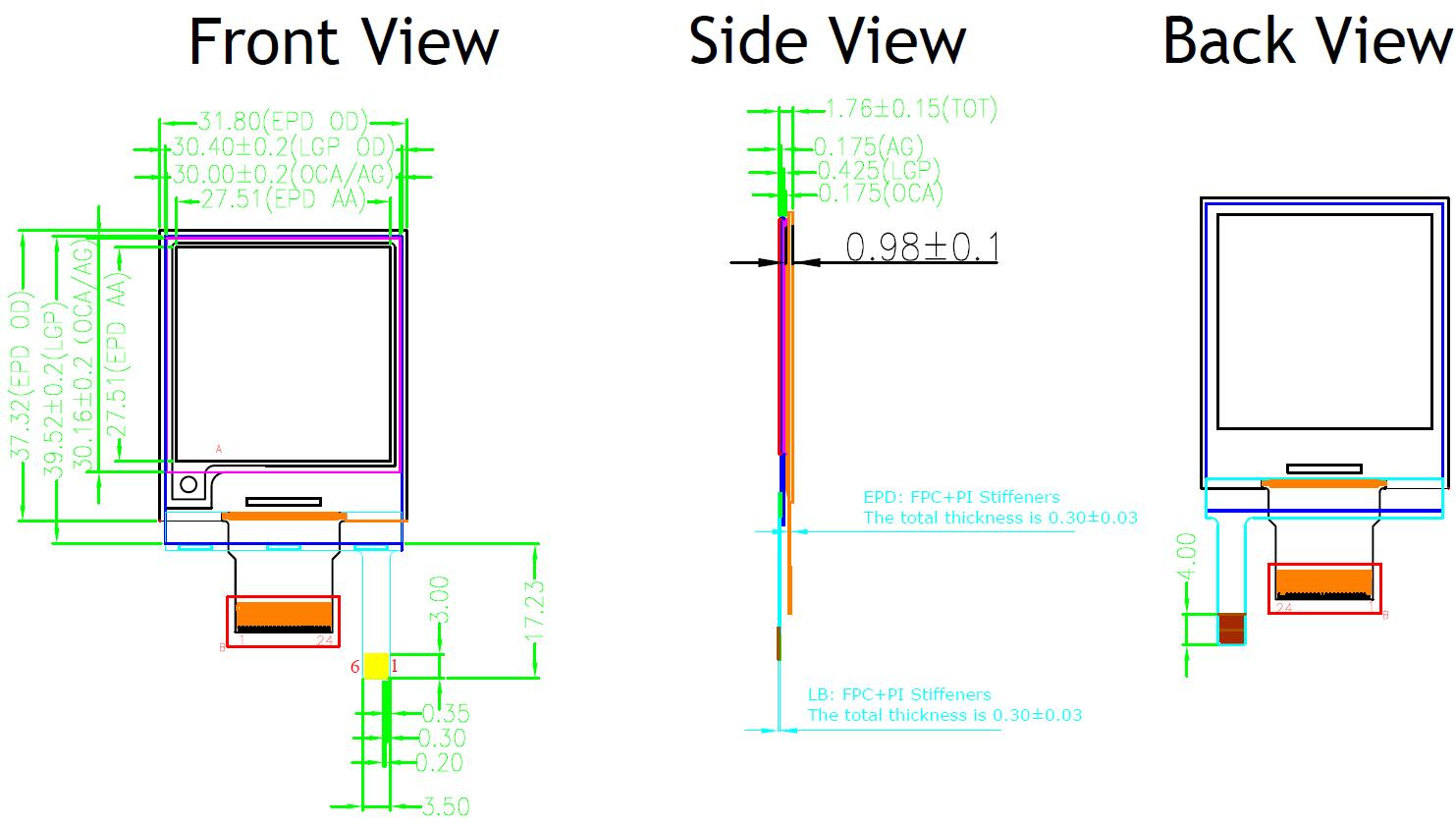

Outline Size(mm)

31.8x37.32x2.00

Actve Size(mm)

27.51x27.51

Pixel Pitch(mm)

0.181x0.181

Operating Temp.

0℃~50℃

Storage Temp.

-25℃~70℃

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

4

Color

Black,White

Time of refresh(s) 3
Time of partial refresh(s) 0.3
Interface  SPI
Driving voltage 2.8V-3V
Supply voltage of LED frontlight(TYP.) 3V
Power consumption of the e-paper only(mW) 26.4
Power consumption of the front-light(mW) 43.5



Related Products

Part Number

Color

Resolution

T/P and Front-

light(Optional)

Features

Refresh Time

GDEW0154M09 B/W 200*200 Fast refresh,Partial refresh 0.82S(Fast refresh)
GDEW0154M10 B/W 152*152 DES, Wide working temperature, Can be used outdoors 4S(Full refresh)

GDEH0154D67

B/W

200*200

Partial refresh

2S(Full refresh)

GDEW0154I9F B/W 152*152 x Partial refresh, Flexible, 4 Grayscale 3S(Full refresh)

GDEW0154Z17

B/W/R

152*152

Three colors

16S(Full refresh)

GDEM0154E97LT

B/W

152*152

Ultra-low temperature

3S(Full refresh)

GDEW0154T8FL

B/W

152*152

Fast refresh,Partial refresh, with front light, 4 Grayscale

0.82S(Fast refresh)

GDEW0154T8

B/W

152*152

Fast refresh, Partial refresh, 4 Grayscale

0.82S(Fast refresh)

GDEW0154Z17FL

B/W/R 152*152 Three colors,with front light 16S(Full refresh)

GDEH0154D67-FL

B/W 200*200 Partial refresh,with front light 2S(Full refresh)

GDEW0154T8-FL

B/W 152*152 Fast refresh, Partial refresh, 4 Grayscale,with front light 0.82S(Fast refresh)
