E-paper display development kit with SPI interface and Micro USB interface

DESPI
This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light
Sold:6
Price:
USD
$27.78
    Please select the information you wantX
Quantity:
-
+
(56 available)
  • Description
  • Reviews
Any questions, just feel free to contact me, my email is: clara@good-display.com
General Description
This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.
DESPI Develop Kit consists of the development board DESPI-M02 and the pinboard DESPI-C02.
It supports driving Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) E-paper Display.
Feature
For SPI interface EPD, power interface is Micro USB interface.
USB serial port and LED indicator light.
Storage capacity increase
Supports being updated by computer directly.
Come with helpful development demo kit with resources and manual (STM32 platform )
The above price inclundes
1. Driving board DESPI-M02 *1pc
2. Connector board DESPI-C02  *1pc
3. USB port cable *1pc
4.Helpful resources and manual(sent via email or download link) *1pc
Main Parameters

Part Number

DESPI

Platform

STM32

Function

Drive E-paper Display

Outside Dimension

90x60mm (DESPI-M02)
41x22mm (DESPI-C02)

Power Interface

USB Interface

Power Input

DC5V

Feature

Fully and Partial refresh

Grey scale Level

Max 16 grey scale

Operating Temp

-20~70℃

Recommended Tool

Keil4

Example Code

Available

Reserved Function

USB to serial port, indicator
light 、keys、current detection and so on.



Part Number

DESPI-C02

Platform

STM32

Function

Connection E-paper Display with DESPI-M02

Outside Dimension

41x22mm

Interface

SPI

Power Input

DC3.3V

Feature

Fully and Partial refresh

Operating Temp

-20~70℃

structure

RESE To 0.47 Ω:
1.1.54 inch E-Paper Display: GDEW0154T8,GDEW0154Z17,GDEW0154Z04,GDEW0154C39
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21

RESE To 3 Ω:
1.1.54 inch E-Paper Display:GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display: GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8

DEMO does not provide electronic paper screen, the screen must be purchased separately

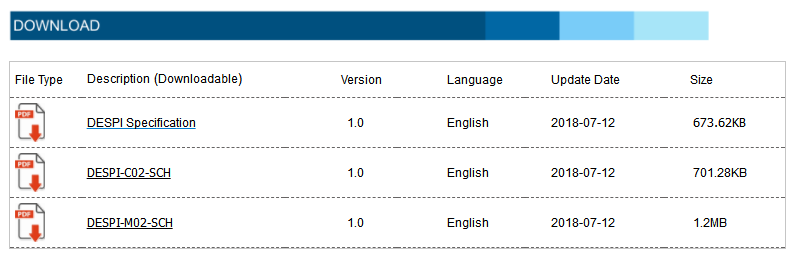

Specification download
http://www.e-paper-display.com/products_detail/productId=402.html
