2.4 inch green 128x64 dots OLED display GDOE0240G

GDOE0240G
GDOE0240G is the 128x64 green pixels OLED display, diagonal is only 2.4 inch. Because the display makes its own light, no backlight is required.
Price:
USD
$20.77
    Please select the information you wantX
Quantity:
-
+
(20 available)
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

General Description

GDOE0240G is the 128x64 green pixels OLED display, diagonal is only 2.4 inch.The controller ic is SSD1305, communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device

Feature
· 6800 8-bit Parallel , 8080 8-bit Parallel , I2C, 4-Wire Serial SPI
· FPC-Soldering
· Wide temperature range
· Come with helpful manual

The above price inclundes
1. 2.4 inch green 128x64 dots oled display * 1pc
2. Helpful manual(sent via email or download link) *1pc

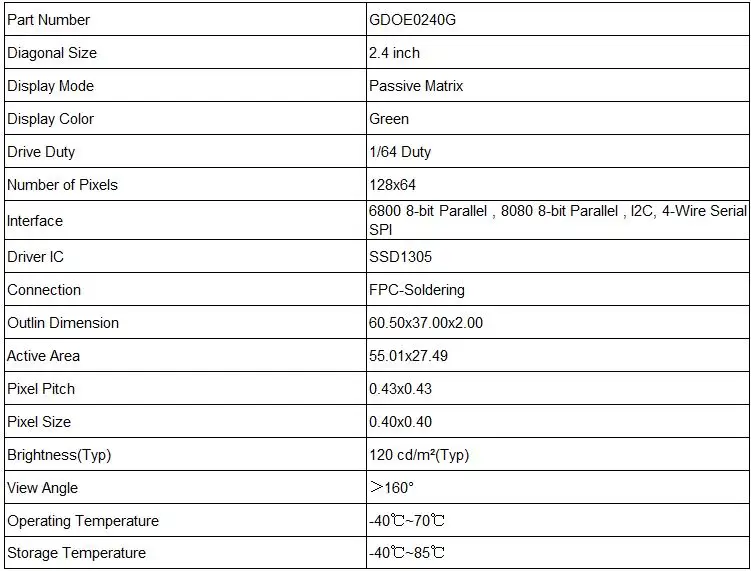

Main Parameters
GDOE0240G

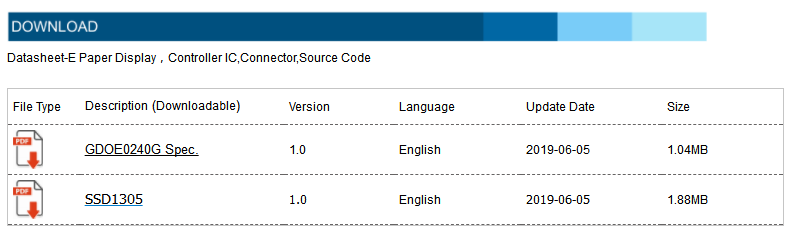

Specification download
http://www.e-paper-display.com/products_detail/productId=454.html
