Name: 2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5
Brand: GOOD DISPLAY
SKU: GDEW0213T5
Price: 5.00 USD
Availability: InStock

Currency:

USD

All Categories

Your position: Home / E-INK DISPLAY / 1.02-2.6 inch

Price:

$5.00

Wholesale:

Quantity:

Description
Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

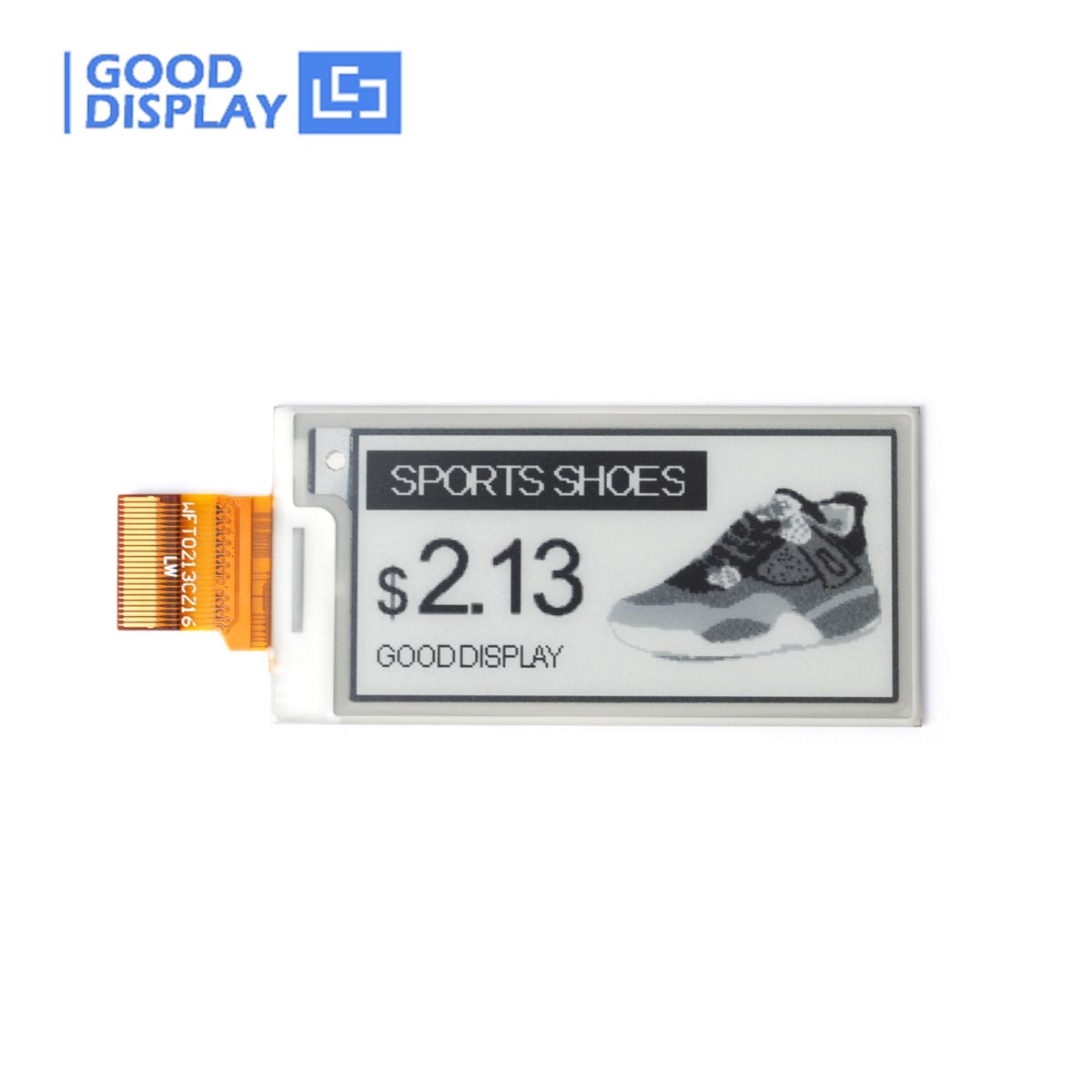

This is an E ink E paper display panel, 2.13 inch, 212*104 resolution, 4 Grayscale, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black and white.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0213T5 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.

· Support partial refresh, fast update and no flicker update.
· 4 Grayscale
· Support fast refresh, 0.82s.
· 212x104 resolution
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266

1. 2.13 inch e-paper e-ink screen GDEW0213T5 *1pc

2. Matched FPC Connector*1pc

3.Helpful resources and manual(sent via email or download link) *1pc
If you want to buy this display with demo kit together, click here:
http://upaj177.myueeshop.com/213-inch-e-paper-display-partial-refresh-4-grayscale-with-demo-kit-drive-board-p0312.html

If you want to buy this display with connect board, click here:
http://upaj177.myueeshop.com/213-inch-e-paper-display-partial-refresh-with-demo-board-p0116.html

Part Number	GDEW0213T5
Type	Dot Matrix
Resolution	212*104
Outline Size(mm)	59.229.20.98
Active Size(mm)	48.55*23.71
Pixel Pitch(mm)	0.229*0.228
Operating Temp.	0~50C
Storage Temp.	-25~70C
Connector	24 Pin FPC, Pitch:0.5mm
Max Grayscale	4
Color	Black,White
Power consumption of the refresh(mW)	26.4
Standby power consumption Pc(mW)	0.0165
Time of refresh(s)	3
Time of partial refresh(s)	0.3

Part Number	Color	Resolution	Feature	Full refresh time
GDEH0213B73	B/W	250x122	Partial refresh	4s
GDEH0213B72	B/W	250x122	Partial refresh	3s
GDEW0213I5F	B/W	212x104	Flexible, Partial refresh, 4 Grayscale	3s
GDEH0213D30LT	B/W	212x104	Low temperature	3s
GDEW0213V7LT	B/W	212x104	Low temperature	3s
GDEW0213C38	B/W/Y	212x104	Three colors	18s
GDEW0213T5	B/W	212x104	Fast refresh, Partial refresh, 4 Grayscale	0.82s(fast refresh)
GDEM0213U23	B/W/R	250x122	Three colors	--
GDEM0213D23	B/W	250x122	SPI interface	--
GDEH0213Z98	B/W/R	250x122	Three colors	13s
GDEH0213Z19	B/W/R	212x104	Three colors	15s

https://zh-tw.buyepaper.com/e-paper-display-development-kit-with-spi-interface-and-micro-usb-interface-p0031-p0031.html

27.78USD

http://www.e-paper-display.com/products_detail/productId=309.html
