1.02 inch mini partial refresh e-paper display panel, GDEW0102T4

GDEW0102T4
1.02 inch e-paper display, 128x80 resolution, 30 pins FPC, SPI interface and support partial refresh. low power consumption, wide viewing angle, for applications like smart tags, smart watch and other products.
6 Review(s) Sold:168
Price:
USD
$6.18
  • Product:
    EPD
    EPD with adapter board DESPI-C02
    EPD with demo kit DESPI-L(C02)
Quantity:
-
+
(145 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide(Above 4.2 inch)
  • Reviews(6)


☆ INTRODUCTION





This is a 1.02 inch mini partial refresh e-paper display panel with 128x80 resolution, SPI interface, and the e-paper display is capable to display images with black and white content. It supports partial refresh, the partial refresh time is 0.3s. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper display GDEW0102T4 is perfect for low power devices powered by solar or batteries.


We provide the E-Ink Adapter Board for you to connect the E-paper Display.


We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array




☆ THE ABOVE PRICE INCLUDE



1) 1.02 inch mini partial refresh e-paper display panel, GDEW0102T4 * 1pc
2) FPC Connector * 1pc




☆ MAIN PARAMETERS




PART NUMBER GDEW0102T4
TYPE Dot Matrix CONNECTOR 30 Pin
SIZE 1.02 inch MAX GRAYSCALE 2
IC UC8175 COLOR Black,White
RESOLUTION 128x80 INTERFACE SPI
OUTLINE SIZE(mm) 32.57x18.6x0.98 FULL REFRESH(s) 3
ACTIVE SIZE(mm) 21.76x14 PARTIAL REFRESH TIME(s) 0.3
PIXEL PITCH(mm) 0.175x0.17 POWER CONSUMPTION OF THE REFRESH(mW) 26.4
OPERATING TEMP. 0℃~50℃ STANDBY POWER CONSUMPTION (mW) 0.0165
STORAGE TEMP. -25℃~70℃



☆ FEATURE




●  Black and white monochrome is easy to read
●  Versatile. Use in portrait or landscape format
●  It supports partial refresh, the refresh rate is 0.3s/frame
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / Arduino / ESP8266 / ESP32



☆ DETAILS








☆ MATCHED DEVELOPMENT KIT




● DESPI-C102 (E-ink Display HAT)

● DESPI-L(C102) (STM32 Platform/Universal)


● DEArduino-L(C102) (Arduino Platform)


● ESP8266-L(C102) (WiFi)


● ESP32-L(C102) (WiFi / Bluetooth)




☆ RELATED INFORMATION DOWNLOAD

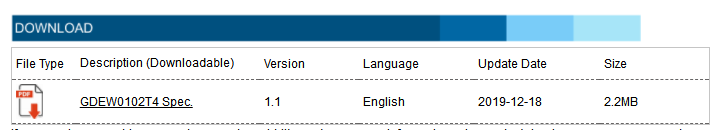

 GDEW0102T4 Specification

 IC Driver UC8175

 Picture Production and Bitmap Convert for GDEW0102I4FC

 GDEW0102T4 Bitmap Conversion

 GDEW0102T4 STM32 Sample Code

 GDEW0102T4 Arduino Sample Code

 GDEW0102T4 ESP8266 Sample Code

 GDEW0102T4 ESP32 Sample Code

 GDEW0102T4 Raspberry Pi Pico Sample Code


☆ WE ALSO SUGGEST...




Mini 0.97 E-ink Display 184x88 resolution SPI Small E-paper Screen, GDEW0097T50

1.02 inch Mini flexible e-ink display small epaper screen module buy GDEW0102I3F

Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen, GDEW0102I4FC

1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67



☆ ABOUT US



Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE (S) OPERATING TEMP. PARTIAL UPDATE FLEXIBLE
GDEW0097T50 0.97'' BW 184x88 22.264x10.648 4 0℃~50℃
GDEW0097C50 0.97'' BWY 184x88 22.264x10.648 22 0℃~40℃
GDEW0102T4 1.02'' BW 128x80 21.76x14 3 0℃~50℃
GDEW0102I3F 1.02'' BW 128x80 21.76x14 3 0℃~50℃

GDEW0102I4FC

1.02''

BW

128x80

21.76x14

3

0℃~50℃

GDEW0154M10 1.54'' BW 152x152 27.512x27.512 3 -10℃~60℃
GDEY0154D67 1.54'' BW 200x200 27x27 2 0℃~50℃
GDEW0154T8D 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEY0154Z90 1.54'' BWR 200x200 27x27 16 0℃~40℃
GDEW0154I9FC 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEW0213I5FD 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEY0213B74 2.13'' BW 250x122 48.55x23.7046 3 0℃~50℃
GDEY0213Z98 2.13'' BWR 250x122 48.55x23.7046 14 0℃~40℃
GDEW0213T5D 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEW026T0D 2.6'' BW 296x152 60.09x30.7 3 0℃~50℃
GDEY0266T90 2.66'' BW 296x152 60.088x30.704 3 0℃~50℃
GDEY0266Z90 2.66'' BWR 296x152 60.088x30.704 12 0℃~40℃
GDEW027W3 2.7'' BW 264x176 57.288x38.192 3 0℃~50℃
GDEY027T91 2.7'' BW 264x176 57.29x38.19 3 0℃~50℃
GDEY029T94 2.9'' BW 296x128 66.896x29.056 3 0℃~50℃
GDEY029Z94 2.9'' BWR 296x128 66.896x29.056 12 0℃~40℃
GDEW029I6FD 2.9'' BW 296x128 66.9x29.06 3 0℃~50℃
GDEQ031T10 3.1'' BW 320x240 62.72x47.04 3 0℃~50℃
GDEY037Z03 3.71'' BWR 416x240 81.54x47.04 12 0℃~40℃
GDEY037T03 3.71'' BW 416x240 81.54x47.04 3 0℃~50℃

PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE (S) OPERATING TEMP. PARTIAL UPDATE FLEXIBLE
GDEW042C37 4.2'' BWY 400x300 84.8x63.6 28 0℃~40℃
GDEW042T2 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEY042T91 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEQ042Z21 4.2'' BWR 400x300 84.8x63.6 19 0℃~40℃
GDEY0579T93 5.79'' BW 792x272 139.00×47.74 3 0℃~50℃
GDEY0579Z93 5.79'' BWR 792x272 139.00×47.74 20 0℃~40℃
GDEW0583C64 5.83'' BWY 600x448 118.80x88.26 25 0℃~40℃
GDEY0583T8 5.83'' BW 648x480 118.78x88.22 3 0℃~50℃
GDEW0583Z83 5.83'' BWR 648x480 119.232x88.32 12 0℃~40℃
GDEY075T7 7.5'' BW 800x480 163.2x97.72 3 0℃~50℃
GDEY075Z08 7.5'' BWR 800x480 163.2x97.72 12 0℃~40℃
GDEP097TC2

9.7''

BW

1200x825

202.8x139.425

1

0℃~50℃



GDEQ102T90 10.2'' BW 960x640 215.52x143.68 4 0℃~50℃
GDEQ102Z90 10.2'' BWR 960x640 215.52x143.68 4 0℃~50℃
GDEH116T91 11.6'' BW 960x640 244.512x163.008 5 0℃~50℃
GDEH116Z91 11.6'' BWR 960x640 244.512x163.008 30 0℃~35℃
GDEY1248Z51 12.48'' BWR 1304x984 252.98x190.90 25 0℃~40℃
GDEP133UT3 13.3'' BW 1600x1200 270.4x202.8 1 -15℃~65℃
